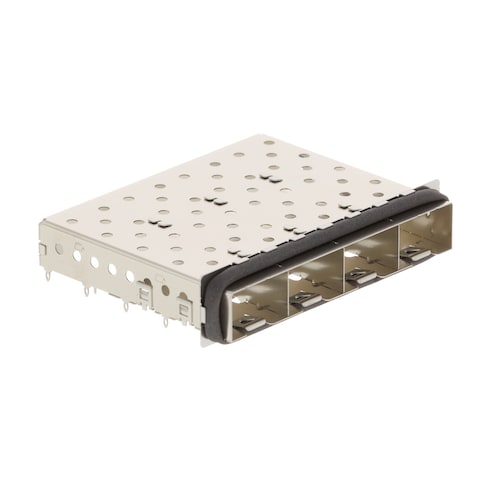

2007135-1

TE Connectivity / AMP
571-2007135-1
2007135-1

制造商：

说明：
I/O 连接器 Cage 1x4 EMI Shield

数据表:
ECAD模型:
下载免费库加载程序，将此文件转换，以供您的ECAD工具使用。了解详情。
更多信息
了解TE Connectivity / AMP 2007135-1详情

供货情况

库存：
0

您可以延期订购此产品。

在途量:
144
生产周期：
10
周 大于所示数量的预计工厂生产时间。
最少： 1   倍数： 1
单价:
¥-.--
总价:
¥-.--
预估关税:

定价 (含13% 增值税)

数量 单价
总价
¥183.5459 ¥183.55
¥170.3927 ¥1,703.93
¥170.3136 ¥4,257.84
¥156.0869 ¥7,492.17
¥155.9174 ¥17,462.75
¥155.0925 ¥39,703.68
¥150.629 ¥77,122.05
1,008 报价

产品属性 属性值 选择属性
TE Connectivity
产品种类: I/O 连接器
RoHS:
Cages
Through Hole
Press Fit
Right Angle
- 55 C
+ 105 C
Tray
商标: TE Connectivity / AMP
触点材料: Nickel Silver Alloy
组装国: Not Available
扩散国家: Not Available
原产国: CN
特点: SFP Ganged 1 x 4
外壳材料: Copper
产品类型: I/O Connectors
工厂包装数量: 16
子类别: I/O Connectors
类型: SFP
单位重量: 100 g
找到的产品:
要显示类似产品，至少选中一个复选框
要显示该类别下的类似产品，请至少选中上方的一个复选框。
已选择的属性: 0

CNHTS:
8538900000
CAHTS:
8538909090
USHTS:
8538908180
JPHTS:
853890000
TARIC:
8538909999
BRHTS:
85389090
ECCN:
EAR99

TE Connectivity SFP+ I/O

TE Connectivity's SFP+ product family extends the use of the Small Form-Factor Pluggable (SFP) interconnect up to 10Gb/s. This system meets the performance requirements of SFF (Small Form-Factor) specification SFF-8431 and supports 8G Fiber Channel and 10G Ethernet applications. The SFP+ product family includes cages, connectors, and copper cable assemblies.
Learn More

SFP+ Family Interconnect System

TE Connectivity SFP+ I/O Interconnects are designed to transfer data at speeds of up to 16Gb/s. The portfolio features 20-position SMT connectors as well as cages in multiple configurations, and with elastomeric gasket or enhanced EMI springs to address EMI containment at higher data rates. TE SFP+ Interconnect family also includes thermal- and EMI-enhanced stacked configurations to further improve performance. Complementary SFP+ direct-attach copper cable assemblies are also offered as high-speed, cost-effective alternatives to fiber optic cables. The assemblies enable hardware OEMs and data center operators to achieve high port density and configurability at low costs and with reduced power requirements.
