Amphenol Rochester Sensors TLL155电容式燃油油面传感器
Amphenol Rochester Sensors TLL155电容式燃油油面传感器设计用于柴油燃料箱。这些传感器可提供可变电阻、电压或电流输出，适用于驱动行业标准燃油计量表或连接到PLC。Amphenol Rochester Sensors TLL155电容式燃油油面传感器可以根据需要裁剪长度，并由最终用户进行磁性校准，标准探头长度为500mm或1000mm。
特性
- 带5孔SAE安装和集成螺纹的燃油油面传感器
- 可根据需要裁剪长度，并进行校准以适应燃油箱，使其适用于所有应用
- 简单的校准设施包括一个led，用于指示成功校准
- 电压、电阻或电流输出选项
- 固态，无易于卡住或断裂的活动部件
- 薄型接头
应用
- Diesel generator fuel tanks (continuous level monitoring with resistive, voltage, or current outputs suitable for control panels and PLCs)
- Industrial fuel storage tanks (remote monitoring and integration into automation or telemetry systems)
- Off-highway machinery (construction, agricultural, and mining equipment where vibration resistance and reliability are critical)
- Marine diesel tanks (low-profile design and cut-to-length probe allow adaptation to varying tank geometries)
- Commercial vehicle fuel tanks (trucks, buses, and specialist vehicles require robust, solid-state sensing with no moving parts)
- Motorsports (SAE 5-hole mounting and a robust, no-moving-parts design make this a popular motorsport choice, with recalibration for different fuel types)
其他资源

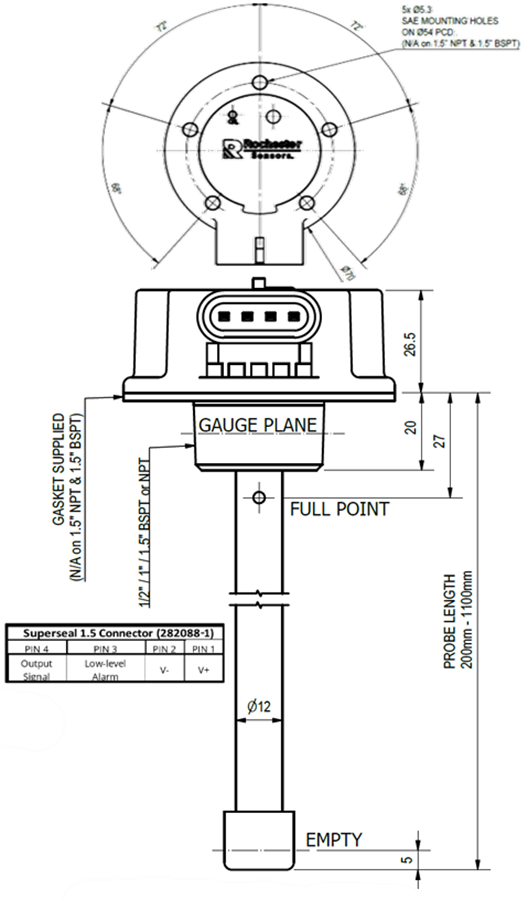

尺寸
