ams OSRAM SFH Ambient Light Sensors

ams OSRAM SFH Ambient Light Sensors feature spectral sensitivity adapted to human eye sensitivity. These light sensors offer a low-temperature coefficient of spectral sensitivity and high linearity. The SFH light sensors feature DIL and SMT packages with high packing density and are based on AEC-Q101-REV-C standards. These light sensors are ideal for mobile phones, rain sensors, headlamp controls, and control and drive circuits.

Features

  • Spectral sensitivity adapted to Human Eye Sensitivity (Vλ)
  • High linearity
  • Low-temperature coefficient of spectral sensitivity
  • AEC-Q101-REV-C

Applications

  • Control and drive circuits
  • Ambient light detector
  • Mobile phones
  • Air sensors

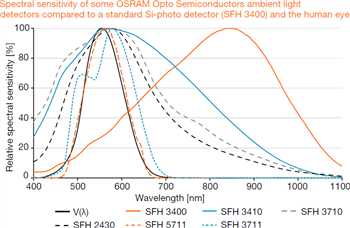

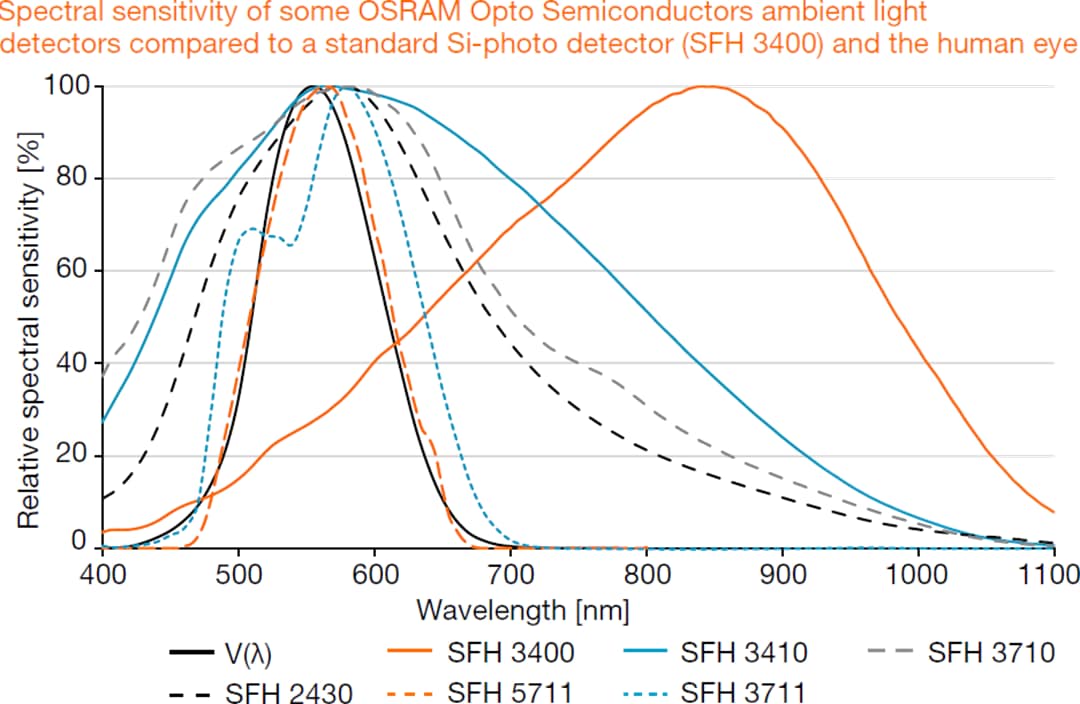

Performance Graphs

View Results ( 5 ) Page
物料编号 数据表 描述
SFH 3410-2/3-Z SFH 3410-2/3-Z 数据表 光电晶体管 PHOTOTRANSISTOR (ALS) SMT SMART DIL
SFH 2270R SFH 2270R 数据表 光电二极管 ALS Photodiode
SFH 2430-Z SFH 2430-Z 数据表 光电二极管 PHOTODIODE (ALS) SMT
SFH 5711-2/3-Z SFH 5711-2/3-Z 数据表 环境光传感器 PHOTO IC (ALS) SMT
GW CS8PM1.PM-LTMP-A535-1-700-R18 GW CS8PM1.PM-LTMP-A535-1-700-R18 数据表 白色 LED
