Analog Devices Inc. EVAL-AD400x-FMCZ评估板

Analog Devices Inc. EVAL-AD400x-FMCZ评估板用于评估AD4000系列模数转换器 (ADC)。AD4000、AD4001、AD4002、AD4003和AD4020是低功耗、16位、18位和20位精密逐次逼近寄存器 (SAR) ADC。它们具有高性能，吞吐量高达2MSPS（AD4020型号为1.8MSPS）。该评估板用于演示ADC的性能，设有适用于各种系统应用的简单接口。

特性

  • 全功能评估板，用于10引线精密模数转换器
  • 多功能模拟信号调理电路
  • 片上基准电压源、基准电压源缓冲器和ADC驱动器
  • PC软件，用于时域、频域控制和数据分析
  • 系统演示平台兼容 (SDP-H1)

应用

  • Industrial Automation Technology (IAT)
    • Field instrument systems
    • Predictive maintenance solutions
  • Instrumentation and measurement solutions
    • Noise, Vibration, and Harshness (NVH) automotive solutions
    • Protocol analyzer solutions
    • Parametric measurement solutions
    • Data acquisition solutions
    • Precision measurement solutions
    • Impedance measurement and analysis solutions
    • DC sources and power supply solutions
    • Analytical instruments
    • Electronic test and measurement solutions
  • Smart building utilities solutions
  • In vitro diagnostic solutions
  • Wireless infrastructure solutions
  • Aerospace and defense systems
    • Avionic systems
    • Electronic surveillance and countermeasures
    • Integrated Microwave Assemblies (IMA)
    • Military communication solutions
    • Missiles and precision munitions
    • Aerospace and defense radar systems
    • Unmanned Aerial Vehicles (UAV)

必要设备

  • PC running Windows 7 or Windows 10
  • SDP-H1 board (EVAL-SDP-CH1Z) or FMC-compatible controller board
  • Cable (SMA input to evaluation board), one end of the cable is standard USB A and the other end is mini-B USB
  • Precision signal source
  • Band-pass filter suitable for 16-bit, 18-bit, and 20-bit testing (value based on signal frequency)
  • AD40xx evaluation software

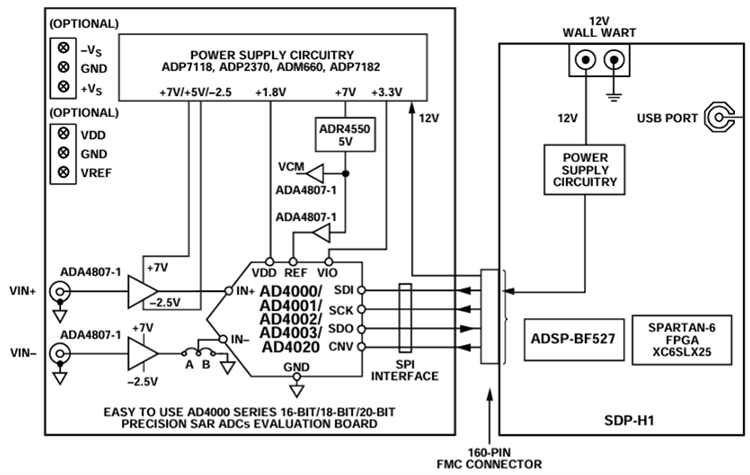

Simplified Block Diagram

框图 - Analog Devices Inc. EVAL-AD400x-FMCZ评估板
