Arduino ASX00061 Nano Connector Carrier
Arduino ASX00061 Nano Connector Carrier is a practical solution for expanding the capabilities of the Nano product family. The Arduino ASX00061 is plug-and-play compatible with Qwiic and Grove modules, making rapid prototyping easier than ever. Whether diving into MicroPython or Matter, building with the Modulino® nodes, or developing AI-powered applications, this carrier provides a simple platform for bringing ideas to life. The onboard microSD card slot unlocks possibilities for data logging, Edge AI, and real-time storage needs.
Features
- Interfaces
- 2x Grove analog/digital connectors
- 1x Grove I2C connector
- 1x Grove UART connector
- 1x Qwiic I2C connector
- 1x microSD card reader
- I/O voltage switchable between +3.3V and +5V
- 28mm x 43mm size
- -40°C to +85°C operating temperature range
Applications
- Industrial automation
- Data logging
- Predictive maintenance
- Proof of concept
- Rapid prototyping
- Compact devices
- Smart homes
- Controllers
- Edge AI
- Research and development
- Education
- Micropython learning
- Cross-disciplinary student projects
- Sustainability and Green technology

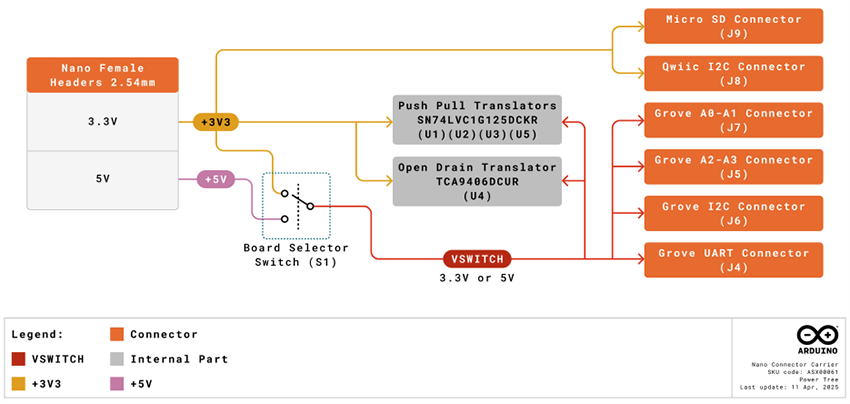

Power Tree

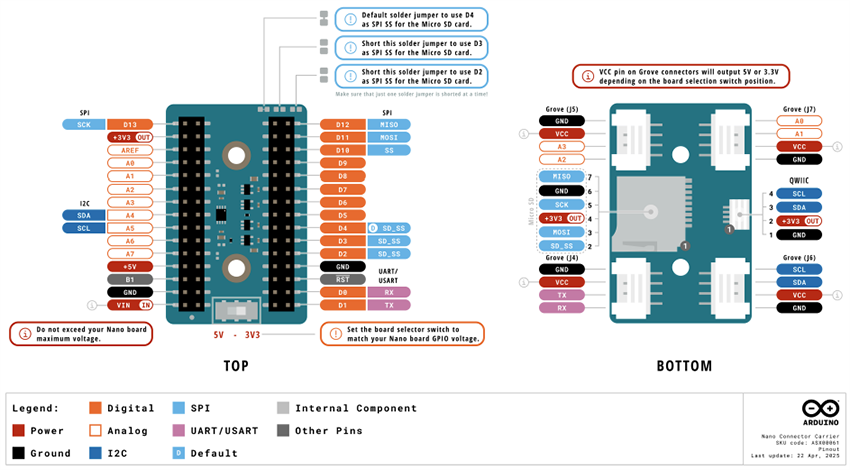

Pinout

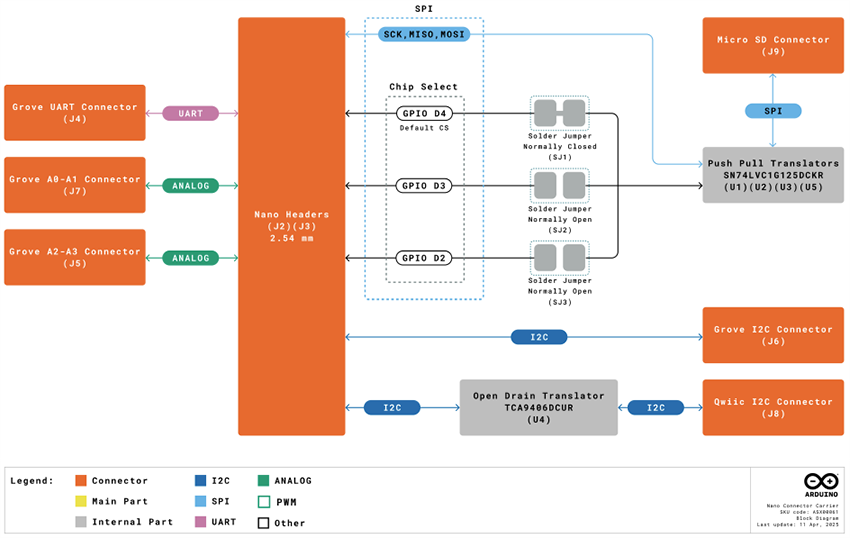

Block Diagram
