Bourns SRN2009T半屏蔽功率电感器
Bourns SRN2009T半屏蔽功率电感器采用半屏蔽结构，具有最大高度为0.95mm的纤薄外形，电感值范围为0.33μH至10μH。SRP2009T系列符合RoHS指令，不含卤素，额定电流高达2.1A。该系列产品非常适合用于直流/直流转换、 电源、可穿戴设备、HDD、SSD、智能手机和LCD显示器。
特性
- Semi-shielded construction
- 0.33μH to 10μH inductance range
- Up to 2.1A rated current
- 0.95mm (maximum) low-profile
- RoHS compliant and halogen-free
应用
- DC/DC converters
- Power supplies
- Wearable Devices
- HDDs / SSDs
- Smartphones
- LCD Displays

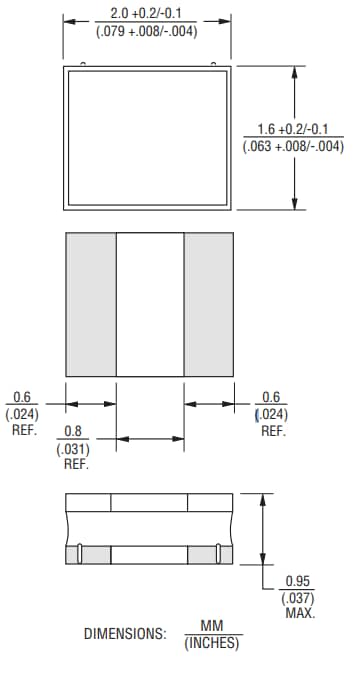

Product Dimensions
Featured Inductors
Bourns SRN Semi-Shielded Power Inductors
Available in several sizes that provide effective magnetic shielding, 200mA to 12A rated current.
