Crouzet Syrline Chronos 2 Timers

Crouzet Syrline Chronos 2 timers are mono-function or multifunction timers for panel mounting. Features include delay on energization, flip-flop, and delay/timing on energization with memory. These products are used in applications such as heating/air conditioning, access control, heat pumps, water and air treatment, waste treatment, lifting and handling, medical equipment, pump management, and many more.

Features

  • Multi-function or mono-function
  • Delay on energization
  • Flip-flop terminals
  • LED status indicator (relay version)
  • 3-wire sensor control option
  • Option of connecting an external power supply to the control input
  • IP40 rating for the housing and an IP20 rating for the terminal block

Applications

  • Heating/air conditioning
  • Access control
  • Heat pumps
  • Water and air treatment
  • Waste treatment
  • Lifting and handling
  • Medical equipment
  • Pump management

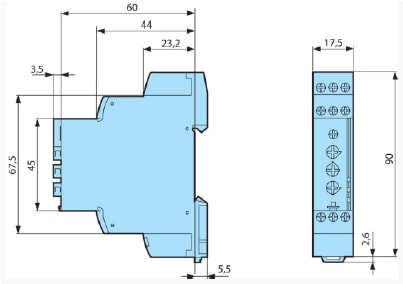

Dimensions

Location Circuit - Crouzet Syrline Chronos 2 Timers
View Results ( 21 ) Page
物料编号 数据表 工作电源电压 显示器类型 描述
OU1R10MV1 OU1R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer OU1R, 12-240 VAC/DC, 1 C/O, 10 A, 0.5 - 10 days, 35 mm
PU2R10MV1 PU2R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer PU2R, 12-240 VAC/DC, 2 C/O, 10 A, 0.5 - 10 days, 35 mm
GDS2R10MV2 GDS2R10MV2 数据表 LED Backlight 时间延迟和计时继电器 Syr-Line Timer TMR48D GDS2, 24-240 VAC/DC, 2 C/O, 10 A, 0.001 s - 9999 h, 48 mm
MDF1R10MV2 MDF1R10MV2 数据表 24 VAC to 240 VAC, 24 VDC to 240 VDC LED Backlight 时间延迟和计时继电器 Syr-Line Timer TMR48D MDF1, 24-240 VAC/DC, 1 C/O, 10 A, 0.001 s - 9999 h, 48 mm
OA2R10MV1 OA2R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer OA2R, 12-240 VAC/DC, 2 C/O, 10 A, 0.5 - 10 days, 35 mm
MDA2R10MV2 MDA2R10MV2 数据表 24 VAC to 240 VAC, 24 VDC to 240 VDC LED Backlight 时间延迟和计时继电器 Syr-Line Timer TMR48D MDA2, 24-240 VAC/DC, 2 C/O, 10 A, 0.001 s - 9999 h, 48 mm
MDE1R05MVA MDE1R05MVA 数据表 100 VAC to 240 VAC, 100 VDC to 240 VDC LCD Display 时间延迟和计时继电器 Syr-Line Timer TMR48D MDE1, 100-240 VAC/DC, 1 C/O, 5 A, 0.001 s - 9999 h, 48 mm
OC1R10MV1 OC1R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer OC1R, 12-240 VAC/DC, 1 C/O, 10 A, 0.5 - 10 days, 35 mm
OL1R10MV1 OL1R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer OL1R, 12-240 VAC/DC, 1 C/O, 10 A, 0.5 - 10 days, 35 mm
PA2R10MV1 PA2R10MV1 数据表 240 V Hand Dial 时间延迟和计时继电器 Syr-Line Plug-In Timer PA2R, 12-240 VAC/DC, 2 C/O, 10 A, 0.5 - 10 days, 35 mm
