Murata LQH3NPN_JR 系列低直流电阻型电感器
Murata LQH3NPN_JR 系列低直流电阻型电感器最大厚度为 1.2mm、电感值 0.68µH 到 47µH。Murata 固定电感器的额定电流为 570mA 到 2860mA。这些器件采用磁屏蔽结构。它们的直流电阻低于 Murata的LQH3NPN_J0 系列。
特性
- Magnetic shield structure
- Lower DC resistance than the LQH3NPN_J0 series
- Compact package size
应用
- Consumer equipment
- Medical equipment
- Industrial equipment
规范
- 1212 (3030) size code inch (mm)
- 0.68µH to 47µH nominal inductance range
- ±20% or ±30% inductance tolerance
- 0.032Ω to 1Ω (±20%) DCR range
- Dimensions
- 3mm ±0.02mm length
- 3mm ±0.02mm width
- 1.1mm ±0.1mm thickness
- 10MHz to 130MHz minimum self-resonant frequency range
- 570mA to 2,860mA rated current range
- Temperature ranges
- -40°C to +105°C ambient operating temperature, not including self-temperature rise
- -40°C to +125°C operating temperature, including self-temperature rise
- -40°C to +105°C storage

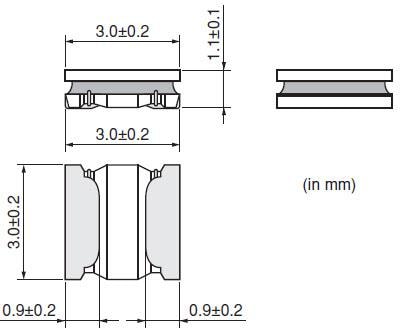

Dimensions
