Nisshinbo NJG1816K75-TE1超低电流SPDT开关

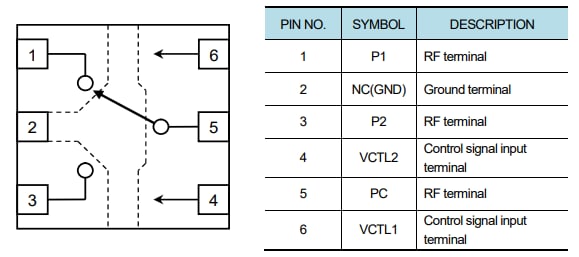

Nisshinbo NJG1816K75-TE1 Ultra Low Current SPDT Switch is a 2-bit control SPDT switch GaAs Monolithic Microwave Integrated Circuit (MMIC) suited for LPWA applications. This switch operates at low control voltage from 1.6V and is ideal for IoT devices with battery operation because of ultra-low current consumption. The NJG1816K75-TE1 ultra-low current SPDT switch is operated at -55°C to 150°C temperature range and stored at -40°C to 105°C temperature range. This switch is RoHS compliant and halogen-free. Typical applications include antenna switching, path switching, and general-purpose switching applications.

Nisshinbo NJG1817ME4-TE1 10W High Power SPDT Switch offers a high power handling capability of 40dBm. This SPDT switch also offers high linearity and low insertion loss up to 6GHz. The high-power SPDT switch features a high switching speed capable of 5G communications. This high-power SPDT switch operates from 2V to 5V of control voltage range and 150ns typical high switching speed. The NJG1817ME4 switch is RoHS compliant and halogen-free with MSL1. This high-power SPDT switch is suitable for commercial radio applications and transmits/receives switching, antenna switching, and other switching applications.

Nisshinbo NJG1817ME4-TE1 10W High Power SPDT Switch offers a high power handling capability of 40dBm. This SPDT switch also offers high linearity and low insertion loss up to 6GHz. The high-power SPDT switch features a high switching speed capable of 5G communications. This high-power SPDT switch operates from 2V to 5V of control voltage range and 150ns typical high switching speed. The NJG1817ME4 switch is RoHS compliant and halogen-free with MSL1. This high-power SPDT switch is suitable for commercial radio applications and transmits/receives switching, antenna switching, and other switching applications.
