RECOM Power DIN导轨安装电源

RECOM Power DIN导轨安装电源相较传统电源具备多重优势，例如安装便捷且节省空间。该系列电源提供多种尺寸、电压及功率规格，满足不同应用需求。这些DIN导轨电源支持90VAC至264VAC输入电压范围，提供多种标准输出选项及功率等级。产品系列包括REDIIN系列DIN导轨式AC/DC电源和RACPRO1系列DIN导轨电源及电子保险丝。典型应用涵盖工业自动化、楼宇与家庭自动化、能源、数据通信与电信以及基础设施领域。

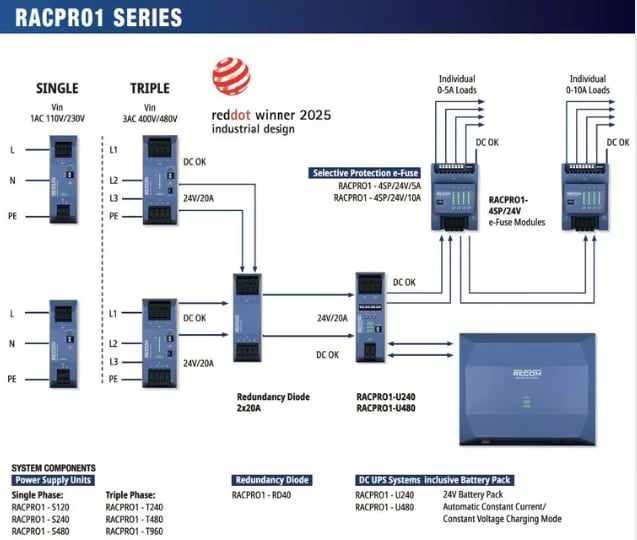

RACPRO1 DIN导轨电源

RACPRO1 DIN导轨电源为高要求工业应用提供240W、480W或960W功率。该系列电源经优化设计以实现最高性能与可靠性，重点满足热管理、平均故障间隔时间(MTBF)及内置保护功能等关键指标。RACPRO1电源采用高效率设计，最大限度降低功耗损耗，减少热量积聚并减轻元件压力，在40°C满载条件下使用寿命可达约80,000小时。集成过压保护、短路保护及热关断等防护功能，显著提升整体耐用性，确保在恶劣工业环境中持续稳定运行。

RACPRO1电子保险丝

RACPRO1-4SP是一款四通道电子保险丝 (e-Fuse) 负载开关，具备独立过流限制控制与实时输出电流指示功能。该模块提供先进的直流保护方案，包含智能负载电流限制、过载与故障检测功能，并简化了安装流程。RACPRO1-4SP电子保险丝支持5A最大通道电流，可提供5秒150%功率提升，并能承受>150%过载达100毫秒，有效避免误动作。

REDIIN DIN导轨电源

REDIIN DIN导轨电源支持90VAC至264VAC输入范围，提供120W、240W及480W功率等级。该系列电源配备24VDC和48VDC单路输出，采用紧凑型30mm、40mm及56mm尺寸设计。REDIIN电源具备过压、短路、过流保护功能，并配备恒流模式，确保在高电容负载下安全启动。这些电源通过IEC/EN/UL/CSA 62368-1和61010-1安全认证，符合EN 55032/35和EN 61204-3电磁兼容标准，包括适用于重工业环境的EN 61000-6-4 B类辐射标准。

REFIN2U/CL Flat Panel 1AC Power Supplies

REFIN2U/CL Series Flat Panel 1AC Power Supply is a high-end AC/DC module of the ultra-slim 2U “step-shape” housings with push-in button terminals. This power supply delivers a 90W continuous output power, 150% peak power for 4.5s. The smart constant current limited power supplies are IEC and UL certified, with output limitations in accordance with UL1310 and NEC Class 2. Din-rail mounting is rated specifically for any orientation and, if required, supported by additional back-panel wings. The REFIN2U-S90/CL power supply features a unique suppression of audible noise, making these flat panel power supplies ideal where distribution boards are situated in office and living areas. The REFIN product families, including the sister series of 30W and 60W in the same 36mm slim housing, offer a wide power range with a cost-effective option in just 2U. This allows them to fit into the same slot of a “flat distribution panel” in case of later increases in system power requirements. The REFIN2U/CL flat panel 1AC power supply is ideal for applications such as industrial automation, home automation, flat panels, tiny machinery, and energy management systems.


应用

  • 工业与自动化
  • 楼宇与家庭自动化
  • 能源
  • 数据通信与电信
  • 基础设施
RECOM Power DIN导轨安装电源
RECOM Power DIN导轨安装电源

视频

其他资源

相关产品

RECOM Power RACPRO1 DIN导轨电源

为要求严苛的工业应用提供240W、480W或960W的功率，具有80,000小时以上的使用寿命。

Learn More关于RECOM Power RACPRO1 DIN导轨电源 View Products与RECOM Power RACPRO1 DIN导轨电源相关

RECOM Power REDIIN DIN Rail Power Supplies

Features 120W, 240W, and 480W output power models designed for industrial & automation applications.

Learn More关于RECOM Power REDIIN DIN Rail Power Supplies View Products与RECOM Power REDIIN DIN Rail Power Supplies相关
发布日期: 2025-08-11 | 更新日期: 2026-02-25
