ROHM Semiconductor CSL901xW贴片LED
ROHM Semiconductor CSL901xW贴片LED是低电流型LED。该器件采用AlGaInP，正向电压1.8V，亮度1级。ROHM CSL901xW采用乳白色漫射树脂，封装尺寸为1.6mm x 8mm (T=0.55)。
特性
- IF：20mA（VF时）
- 正向电压：1.8V（典型值）
- 亮度：1级
- 工作温度范围：-40°C至85°C
- 储存温度：-40°C至100°C
- 封装尺寸：1.6mm x 8mm (T=0.55)
应用
- 家用电器
- 工业设备

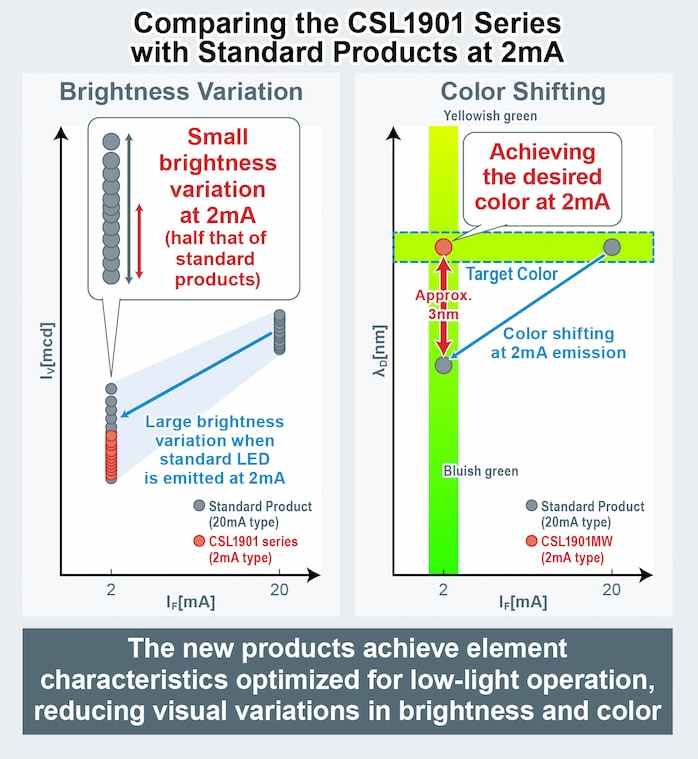

对比图

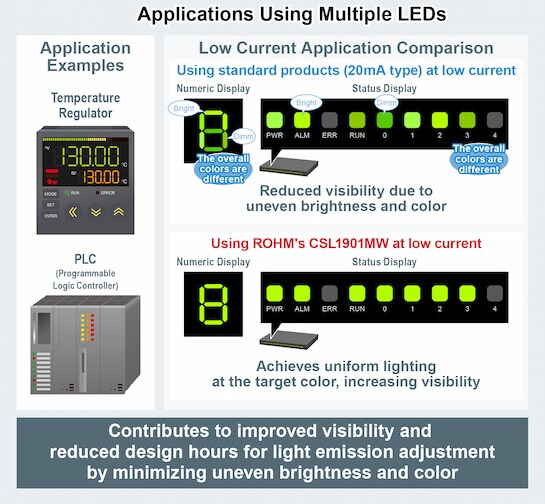

LED应用
View Results ( 5 ) Page
| 物料编号 | 数据表 | 描述 | 波长/色温 |
|---|---|---|---|
| CSL1901UW1 |  |
单色LED Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 620 nm |
| CSL1901VW1 | |
单色LED Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 630 nm |
| CSL1901YW1 | |
单色LED Yellow Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 590 nm |
| CSL1901DW1 | |
单色LED Orange Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 605 nm |
| CSL1901MW1 | |
单色LED Yellow Green Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 570 nm |
发布日期: 2022-08-16
| 更新日期: 2022-11-11
