Taiwan Semiconductor TST Trench Schottky Rectifiers

Taiwan Semiconductor TST Trench Schottky Rectifiers offer excellent high-temperature stability, high efficiency, and high forward surge capability. These rectifiers feature a maximum mounting torque of 0.56Nm and operate within the -55°C to 150°C temperature range. The TST trench Schottky rectifiers come in a TO-220AB case and are RoHS-compliant and halogen-free. These rectifiers meet the JESD 201 class 2 whisker test, and the molding compound meets UL 94V-0 flammability rating. Typical applications include Switched Mode Power Supply (SMPS), adapters, and DC-to-DC converters.

Features

  • Excellent high-temperature stability
  • Low power loss, high efficiency
  • High forward surge capability

Specifications

  • 0.56Nm maximum mounting torque
  • -55°C to 150°C operating temperature range
  • TO-220AB case
  • Molding compound meets UL 94V-0 flammability rating
  • Meet JESD 201 class 2 whisker test
  • RoHS-compliant
  • Halogen-free according to IEC 61249-2-21

Applications

  • Switched Mode Power Supply (SMPS)
  • Adapters
  • DC-to-DC converters

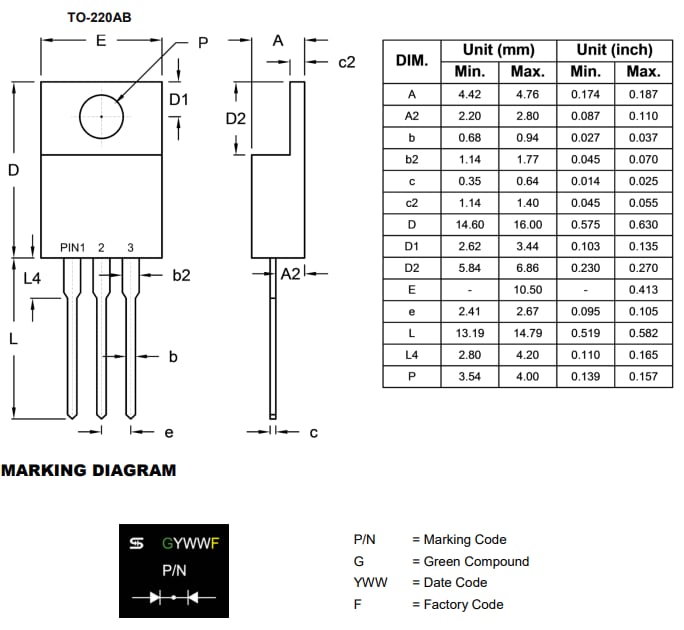

Package Outline Dimensions

Mechanical Drawing - Taiwan Semiconductor TST Trench Schottky Rectifiers
View Results ( 17 ) Page
物料编号 描述 数据表 If - 正向电流 Vrrm - 重复反向电压 Vf - 正向电压 Ifsm - 正向浪涌电流 Ir - 反向电流 Vr - 反向电压
TST10102C 肖特基二极管与整流器 10A, 100V, Trench Schottky TST10102C 数据表 10 A 100 V 700 mV 180 A 50 uA 70 V
TST10122C 肖特基二极管与整流器 10A, 120V, Trench Schottky TST10122C 数据表 10 A 120 V 800 mV 170 A 50 uA 84 V
TST20102C 肖特基二极管与整流器 20A, 100V, Trench Schottky TST20102C 数据表 20 A 100 V 780 mV 215 A 50 uA 70 V
TST20122C 肖特基二极管与整流器 20A, 120V, Trench Schottky TST20122C 数据表 20 A 120 V 850 mV 210 A 50 uA 84 V
TST30122C 肖特基二极管与整流器 30A, 120V, Trench Schottky TST30122C 数据表 30 A 120 V 880 mV 260 A 50 uA 84 V
TST40122C 肖特基二极管与整流器 40A, 120V, Trench Schottky TST40122C 数据表 40 A 120 V 850 mV 350 A 50 uA 84 V
TST20U45C 肖特基二极管与整流器 20A, 45V, Trench Schottky TST20U45C 数据表
TST20U60C 肖特基二极管与整流器 20A, 60V, Trench Schottky TST20U60C 数据表
TST30L45C 肖特基二极管与整流器 30A, 45V, Trench Schottky TST30L45C 数据表
TST30U45C 肖特基二极管与整流器 30A, 45V, Trench Schottky TST30U45C 数据表
